86 inch 3840X2160 Ultra-wide stretched Bar Type Lcd Displays for Shopping mall
Our line of super stretched bar Type LCD displays provide super wide aspect ratios as wide as 16:1 and in sizes ranging from 8 inches to 100 inches. Large ultra wide displays are ideal for displaying panoramic content and catching an audience's attention in advertising and digital signage applications, while smaller sizes are commonly used in appliances, kiosks, mobile devices, flight simulators, and gaming machines.
The specification
| The specification |
| Model No | Product model | ZXTLCD-BAR860MHMJ |
| LCD Screen Panel | Screen size | 86" LCD Panel |
| Active display area | 2148.48(H) X 598.32(V)mm |
| Resolution | 3840(V) X 1080(H) |
| Brightness | 700cd/m2 |
| Contrast ratio | 1000:1 |
| Display color | 16.7M |
| Backlight type | WLED |
| Viewing angles | 178°(H) X 178°(V) |
| Response time | 9ms |
| Lifespan | 50000 hours |
| Monitor PCB Board | CPU | MSTAR V56(TSUMV56RUU) |
| Interfaces | USB2.0 |
| HDMI*2 |
| TF/Audio/DC IN |
| machine specification | Operating voltage | 100-240V(50/60Hz) |
| Power consumption | ≤70W |
| Product size | 2158.3(H)X611.2(V)X84.5(D)mm |
| Installation | Embedded, wall-mounted |
| Appearance material | Metal shell |
| Net weight | ≤18KG |
| Surface treatment | Black metal paint |
| Environmental | Storage Environment | Temperature:-20℃～60℃ |
| Humidity:5%～95% |
| Atmospheric Pressure:86kPa～104kPa |
| Working Environment | Temperature:-10℃～50℃ |
| Humidity:10%～85% |
| Atmospheric Pressure:86KPa～104KPa |
| Packing list | Bar lcd display | 1pcs |
| Power Cable | 1Pcs |
| Support special requirements customization |
The design drawing as follows :

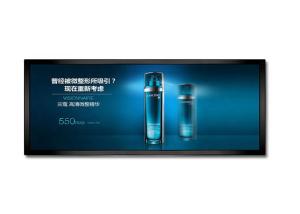

Product Physical Photo as follows :
High brightness is native on many models, and is an option for most other models making these displays suitable for outdoor applications where sunlight readability is necessary.
The most popular application for bar-style LCD is in public transportation displays, including route displays onboard trains, streetcars, and buses, advertising displays in airports, bus stations, and train stations, and in several cases they are mounted on top of taxi cabs as mobile ad space.
If you would like to discuss your requirement or need any additional information on our stretched bar type Lcd display, and then please do not hesitate to contact our sales team.
